EX-9605-65-BF

Description

The EX-9605-65-BF series is a 1.65um buried heterostructure (BH) InGaAsP/InP MQW-DFB(Distributed Feedback) laser diode entirely fabricated by MOVPE. It features a built-in optical isolator and TEC. It is housed in a 14-pin Butterfly package.

Key Features

Multiple Quantum Well (MQW) Distributed Feedback (DFB)
Built-in optical isolator
Internal thermoelectric cooler, thermistor
Comply Bellcore 468 specifications
Single mode fiber

Applications

CH4 Sensing/OTDR

Series	EX-9605-65-BF
Product Type	Module
Form Factor	Coaxial/butterfly

Parameter	Symbol	Condition	Min	Typ	Max	Unit

^* Pulse conditions: Pulse width (PW) = 10 μs, Duty = 1%

Parameter	Symbol	Test Conditions	Min	Typ	Max	Unit

Tested under T_c=25°C

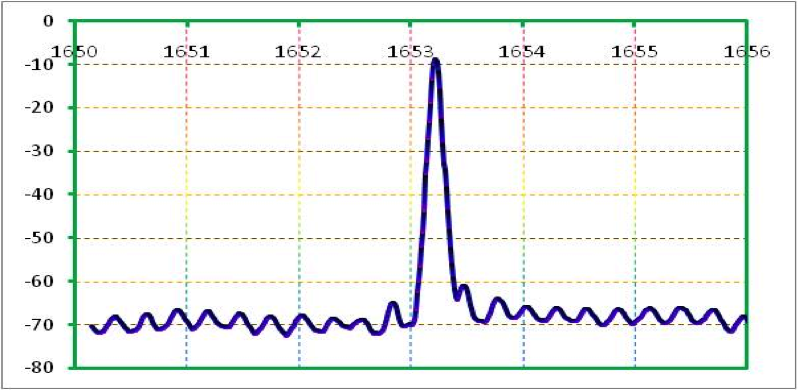

Curves

Schematic Diagrams

Schematic diagrams coming soon.

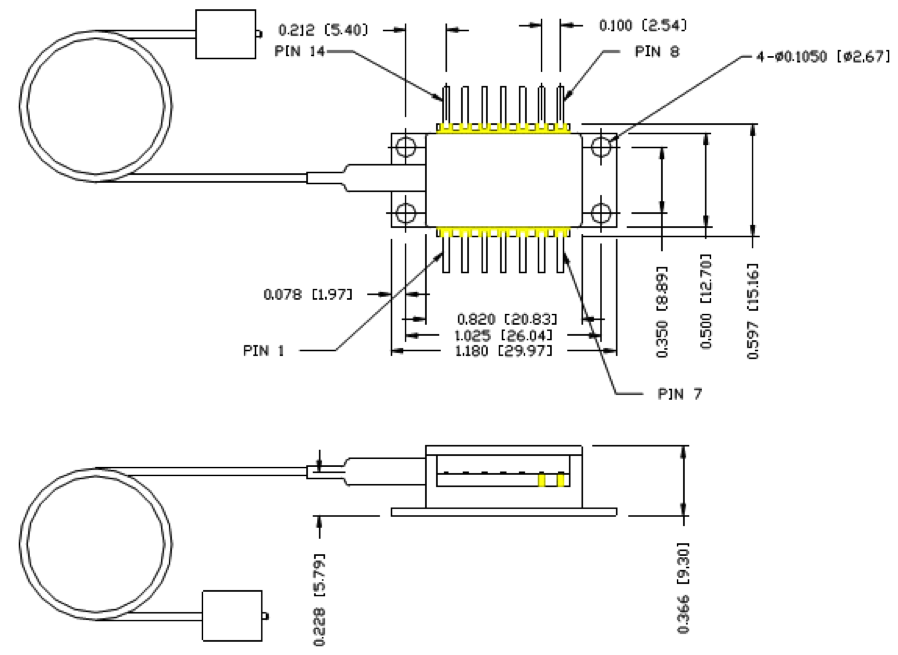

Outline Diagram (unit: mm)

Ordering Options

Ordering options coming soon. ExOptronics, Inc. reserves the right to make changes in design, specifications without prior notice.
